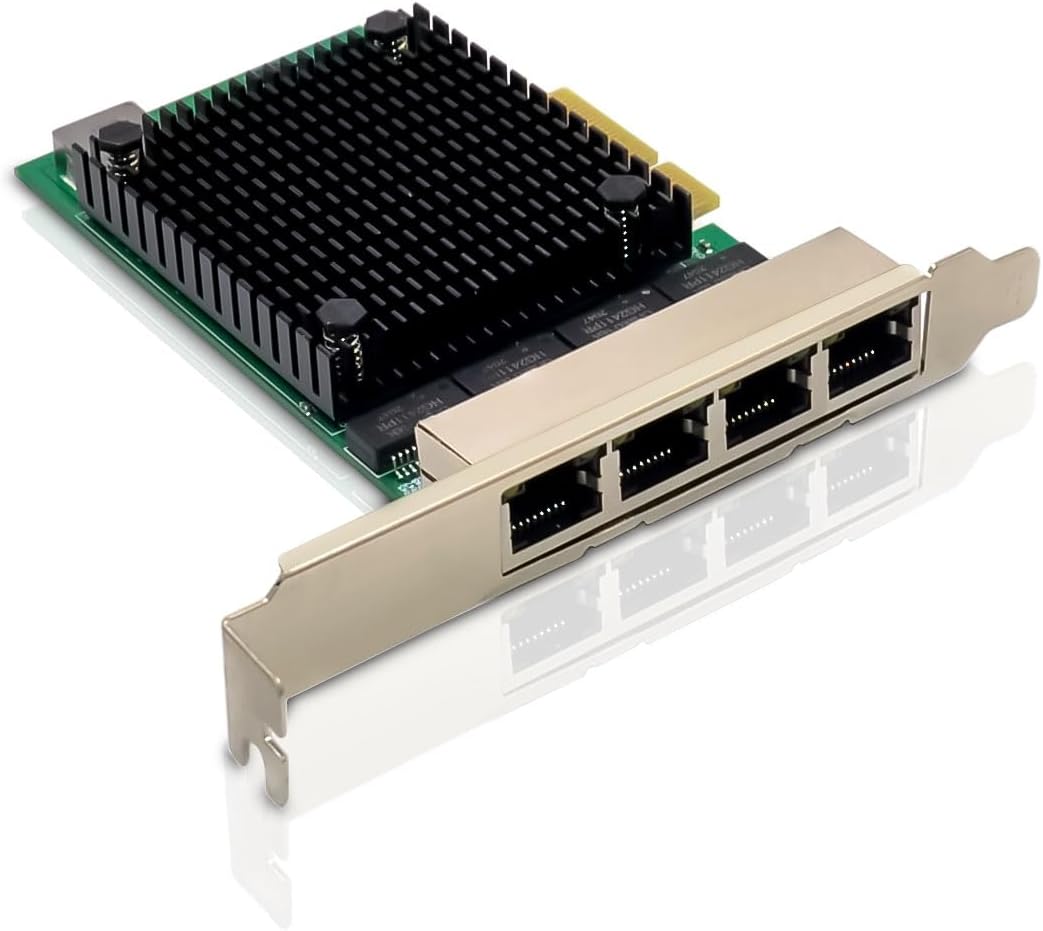

2.5Gb PCIe X4 NIC Converged Network Card 4*RJ45 Port with RTL8125B Chip Ethernet LAN 2500/1000/100Mbps Gigabit Network Adapter for Win/Linux/Dos

Availability:

9 in stock


  • HIGH QUALITY REALTEK RTL8125B CONTROLLER: X4R2115-11 Server Ethernet Network Interface Card ( NIC ) adopts high quality original Realtek RTL8125B chip. Reliable and proven 10/100/1000Mbps/2.5G Gigabit Ethernet technology from Intel corporation. Meet PCI Express v2.1 (5.0GT/s) x4, Compatible with PCIe x8 or x16.
  • POWERFUL FEATURES: Quad-port 2.5G Gigabit Ethernet server card, High-performing bridgeless design supporting PCI Express v2.1 5GT/s, Reliable and proven Gigabit Ethernet technology from Realtek Corporation, Support PCI Express Specification Revision 2.1. Supports ECMA-393 ProxZzzy Standard for sleeping hosts and Wake-On-LAN and ‘RealWow!’ Technology (remote wake-up), jumbo frame to 16K bytes.
  • BROAD COMPATIBILITY: X4R2115-11 NIC Network Card complies with IEEE802.3,IEEE802.3u,IEEE802.3ab, IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization, IEEE802.1Qav credit-based shaper algorithm, IEEE802.1P Layer 2 Priority encoding, IEEE802.1Q VLAN tagging, IEEE802.1ad Double VLAN, IEEE802.3az (Energy Efficient Ethernet), IEEE802.3bz(2.5GBase-T). Compatible with Windows* 7/8/8.1/10/11, Windows Server 2008/2012,Linux,DOS. (For more system support, please leave us a message.)

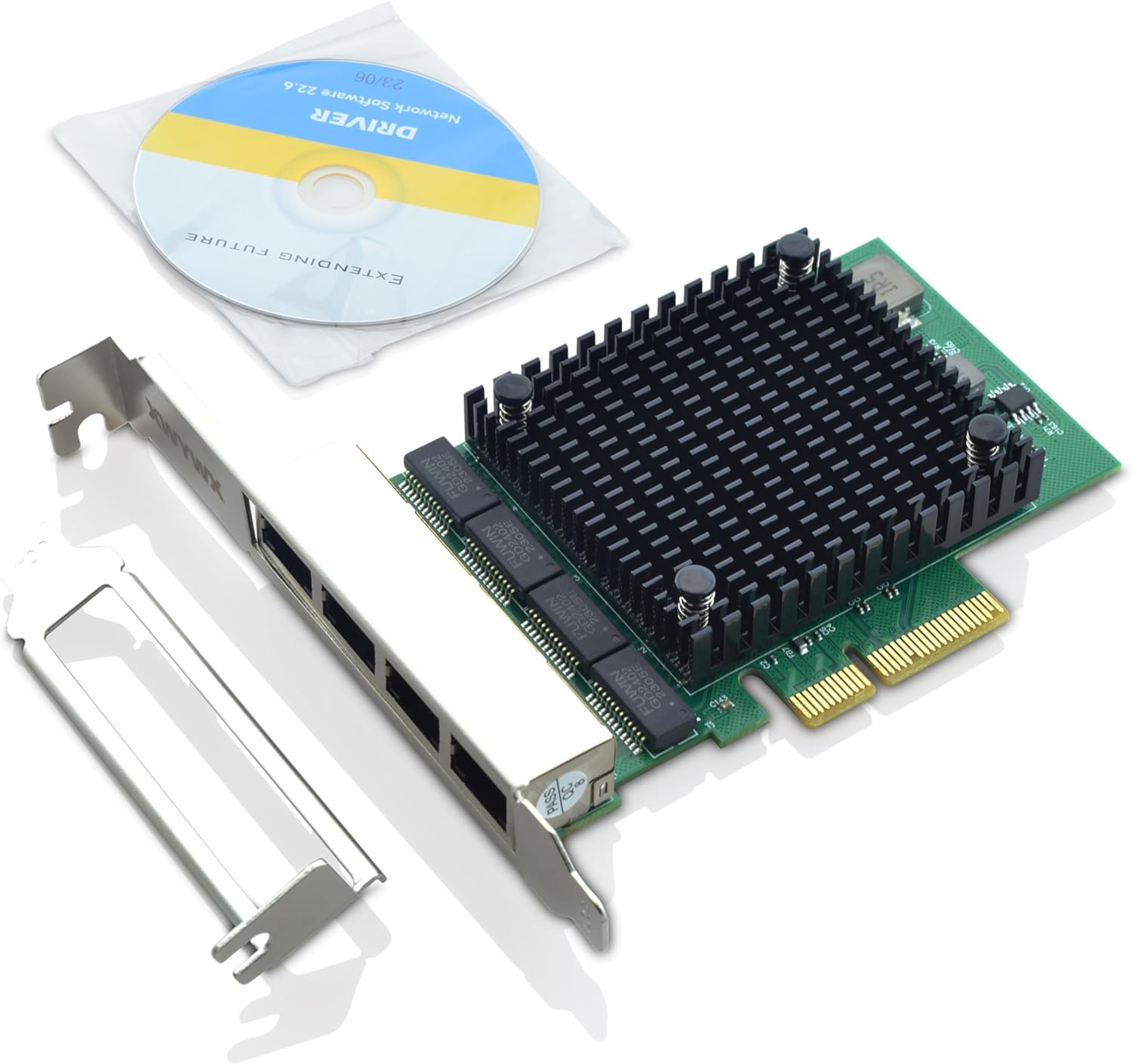

  • EASY TO INSTALL AND MANAGE: Simply plug into the PCI-Express X4/X8/X16 slot, download the driver from Intel’s website (or copy from CD-ROM) and install it to enjoy high-speed networking. X4R2115-11 PCI-Express Ethernet LAN Network Adapter is equipped with a standard bracket and a low-profile form factor bracket, which not only supports standard chassis, but also is compatible with small form factor computer mainframes and servers.
  • QUAD-RJ45 2.5GbE PORTS: X4R2115-11 PCI-e NIC Converged Network Adapter provides quad 2.5Gb RJ45 ports(Support 10/100/1000Mbps/2.5Gb), which fully meets the requirements of data centers and provides stable and efficient data connectivity for data centers. X4R2115-11 server PCI Express NIC Network Card adopts X4 PCIe channel and is compatible with X8/X16 PCIe.
  • PROFESSIONAL AFTER-SALES SUPPORT: Professional communication technicians provide sales service, 1 months free return and exchange, 1 years free warranty.

3,900.00 6,000.00

9 in stock

Compare

2.5Gb PCIe X4 NIC Converged Network Card 4*RJ45 Port With RTL8125B

XWYWX X4R2115-11 PCI Express RTL8125B Quad-Port 2.5G network adapter is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .it is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.

2.5Gb 4*RJ45 Ethernet Server Card Specification:

  • Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver, Supports 2.5G and 1G Lite mode.
  • Auto-Negotiation with Extended Next Page capability(XNP), Support PCI Express Specification Revision 2.1, X4.
  • Supports pair swap/polarity/skew correction, Crossover Detection& Auto-Correction, Supports 1-Lane 2.5/5Gbps PCI Express Bus.
  • Supports hardware ECC(Error correction code)function,Hardware CRC(Cyclic Redundancy Check)function, Supports PCI MSI (Message Signaled Interrupt)and MSI-X, Transmit/Receive on-chip buffer support.
  • Supports ECMA-393 ProxZzzy Standard for sleeping hosts, RTL8125B+ASM1806 Chipset.
  • Wake-On-LAN and ‘RealWow!’ Technology (remote wake-up)supports.
  • Compatible with IEEE802.3,IEEE802.3u,IEEE802.3ab, IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization,IEEE802.1Qav credit-based shaper algorithm, IEEE802.1P Layer 2 Priority encoding, IEEE802.1Q VLAN tagging.
  • Supports IEEE802.1ad Double VLAN, IEEE802.3az (Energy Efficient Ethernet), IEEE802.3bz(2.5GBase-T), full duplex flow control(IEEE802.3x).
  • Supports jumbo frame to 16K bytes, Supports Virtual Machine Queue(VMQ), quad core Receive –Side Scaling(RSS), Protocol Offload (ARP&NS).
  • Chipset:RealtekRTL8125B.

System Requirements:

  • Windows* 7/ 8/8.1/10/11, Windows Server 2008/2012.
  • Linux, DOS. (For more system support, please leave us a message.)
Weight 0.250 kg
Dimensions 15 × 12 × 4 cm
  • HIGH QUALITY REALTEK RTL8125B CONTROLLER: X4R2115-11 Server Ethernet Network Interface Card ( NIC ) adopts high quality original Realtek RTL8125B chip. Reliable and proven 10/100/1000Mbps/2.5G Gigabit Ethernet technology from Intel corporation. Meet PCI Express v2.1 (5.0GT/s) x4, Compatible with PCIe x8 or x16.
  • POWERFUL FEATURES: Quad-port 2.5G Gigabit Ethernet server card, High-performing bridgeless design supporting PCI Express v2.1 5GT/s, Reliable and proven Gigabit Ethernet technology from Realtek Corporation, Support PCI Express Specification Revision 2.1. Supports ECMA-393 ProxZzzy Standard for sleeping hosts and Wake-On-LAN and ‘RealWow!’ Technology (remote wake-up), jumbo frame to 16K bytes.
  • BROAD COMPATIBILITY: X4R2115-11 NIC Network Card complies with IEEE802.3,IEEE802.3u,IEEE802.3ab, IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization, IEEE802.1Qav credit-based shaper algorithm, IEEE802.1P Layer 2 Priority encoding, IEEE802.1Q VLAN tagging, IEEE802.1ad Double VLAN, IEEE802.3az (Energy Efficient Ethernet), IEEE802.3bz(2.5GBase-T). Compatible with Windows* 7/8/8.1/10/11, Windows Server 2008/2012,Linux,DOS. (For more system support, please leave us a message.)
  • EASY TO INSTALL AND MANAGE: Simply plug into the PCI-Express X4/X8/X16 slot, download the driver from Intel’s website (or copy from CD-ROM) and install it to enjoy high-speed networking. X4R2115-11 PCI-Express Ethernet LAN Network Adapter is equipped with a standard bracket and a low-profile form factor bracket, which not only supports standard chassis, but also is compatible with small form factor computer mainframes and servers.
  • QUAD-RJ45 2.5GbE PORTS: X4R2115-11 PCI-e NIC Converged Network Adapter provides quad 2.5Gb RJ45 ports(Support 10/100/1000Mbps/2.5Gb), which fully meets the requirements of data centers and provides stable and efficient data connectivity for data centers. X4R2115-11 server PCI Express NIC Network Card adopts X4 PCIe channel and is compatible with X8/X16 PCIe.
  • PROFESSIONAL AFTER-SALES SUPPORT: Professional communication technicians provide sales service, 1 months free return and exchange, 1 years free warranty.
