foxaa 4k HDMI Extender Over LAN Routers Switchers Ethernet Network 120M RJ45 CAT5 CAT6-Single Source from 1080P Full HD STB DVD PS3 – w DLP LCD LED Supports TCP IP by Ethernet DC 5V 1A

foxaa 4K@30Hz/ 1080p HDMI signal up to 400ft via Cat5e / Cat6 / Cat7 Ethernet Cable

• Local Loop Out – Allows one additional display on the signal sending side provides convenience for monitoring
• Remote IR Control – Control the input HDMI video source (e.g. DVD player) from the display (e.g. TV, monitor) location with the included IR sensor cables

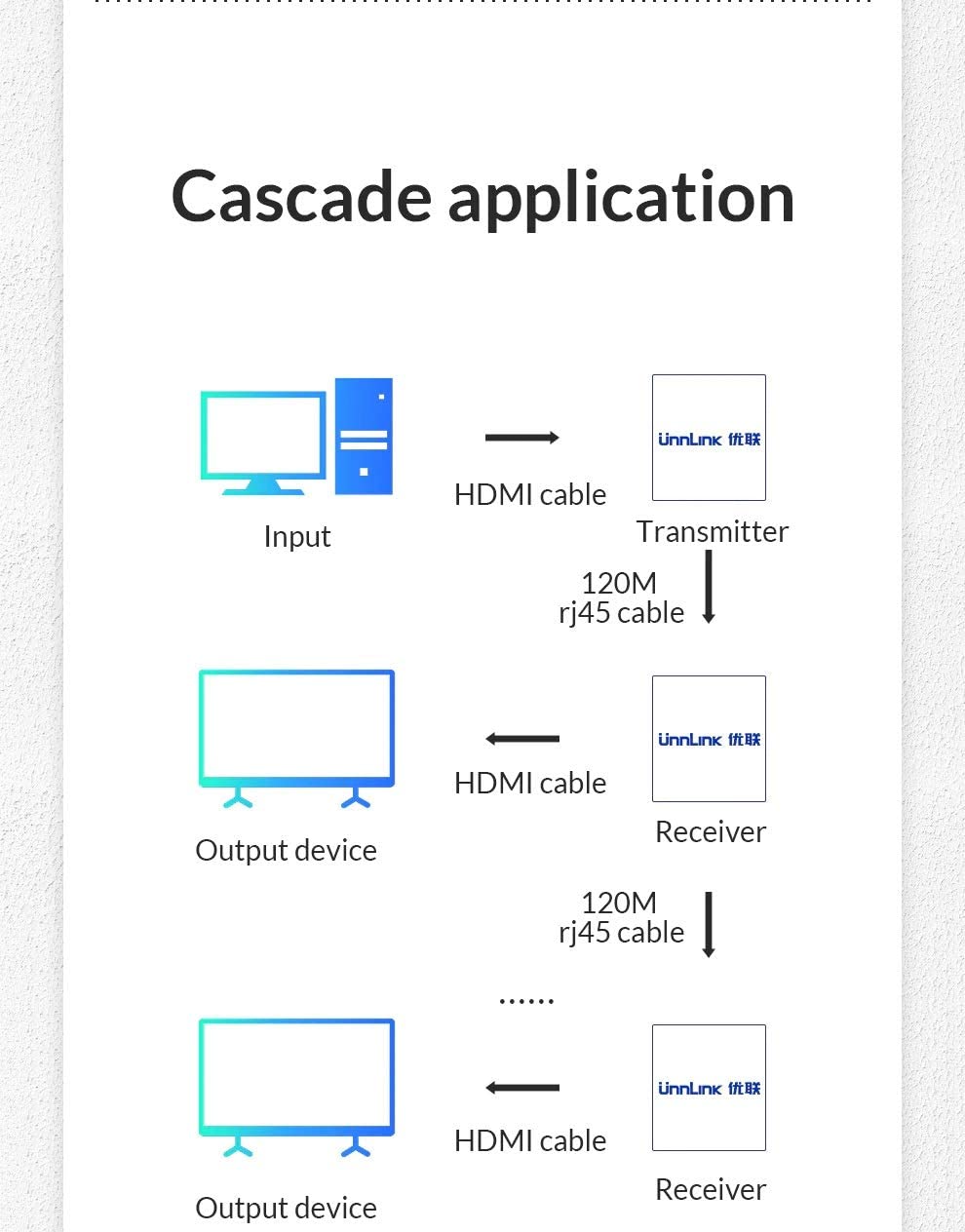

• Cascading – Allows 1-to-1 or 1-to-multiple extension with additional Receiver unit.

Functions:

• This kind of HDMI Extender uses one piece of UTP cable with cross stand inside to extend the HDTV display up to 120 meters for 4K.
• It not only breaks the limitation of the HDMI cable transmission length but also CAT-5e/6 has more flexibility and convenience in cable construction.
• It is equipped with HDMI (high definition multimedia interface) connectors and is capable of supporting DVI (digital visual interface) equipment when used with an HDMI to DVI Adapter.
• It provides greater flexibility and options when integrating several home theater components.

Feature:

• Support video input and output: 24/50/60fs/4k/1080p/1080i/720p/576p/576i/480p/480i;
• Support HDMI2.0, backward compatible with HDMI1.4, HDMI1.3;
• Support video resolution 3840 * 2160 / 60HZ;
• Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;
• The transmitter and receiver are used in pairs, no need to set;
• Signal transmission: use a cat5e or cat6 line (recommended) instead of HDMI cable to connect the receiver and transmitter RJ45 port can transmit 120 meters;
• LED display light: When the power supply or extender is working, the related LED light will be brighter;
• Using AWG26 specification cable, in accordance with IEEE-568B standard, signal transmission up to 120 meters;

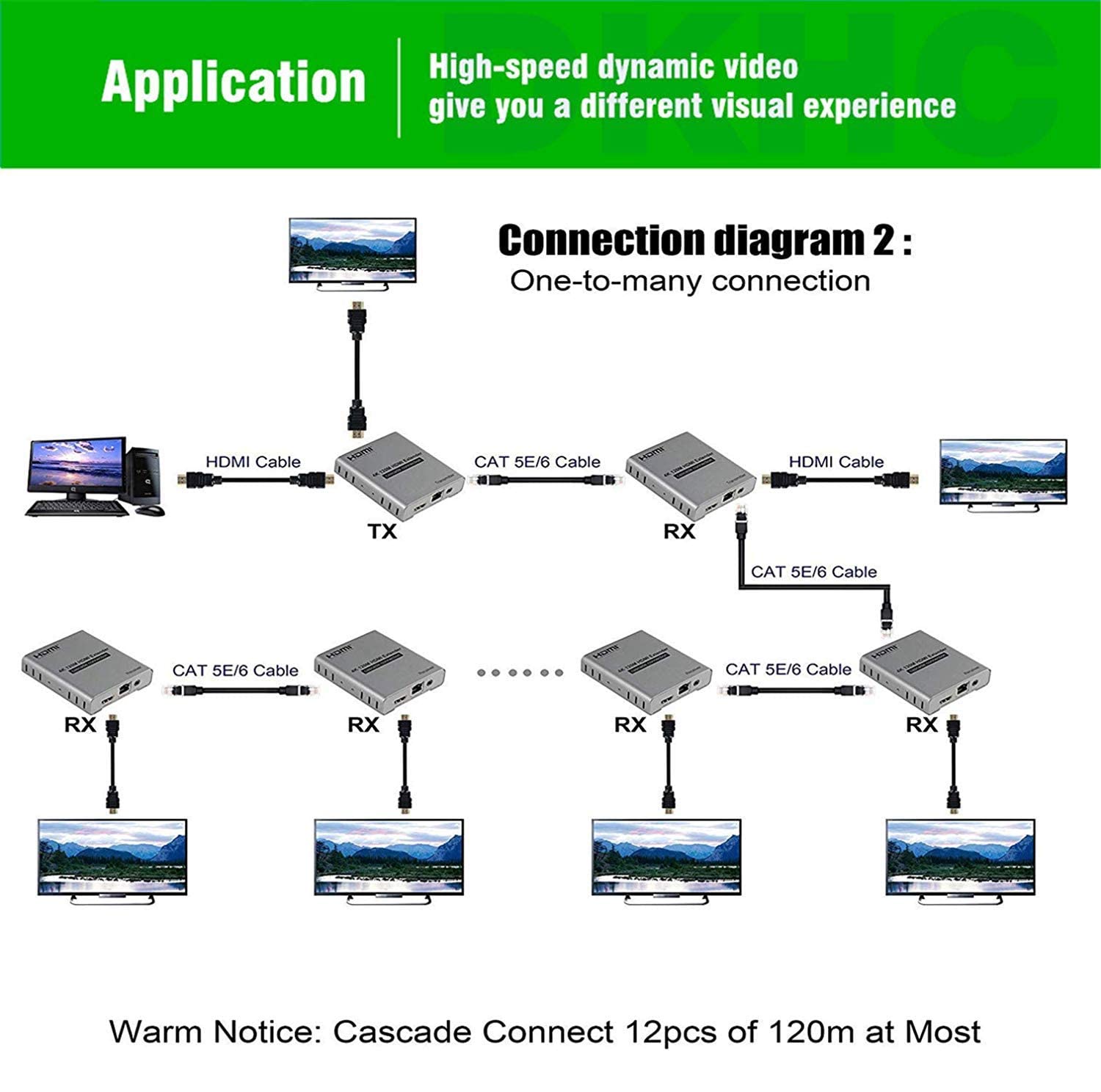

• Connection mode: one-to-one-point-to-point mode, one-way multi-receiving route allocation mode, one-shot multi-receiving switch cascading mode;
• External power supply: DC5V/2A power adapter (Note: the default European regulations / US regulations, no remarks random delivery);
• Quick installation, simple operation, plug and play.

Package Included:

• 1 x TX Extender
• 1 x RX Extender
• 1 pair IR Cable
• 1 x 5V/1ADC Power adapter x 2pcs
• 1 x User Manual
