HDMI 60m KVM Extender With Audio, USB Extender 1080P 60Hz, HDMI KVM USB Extender Over Cat5/6 Ethernet Cable Signal Extension Support IR Control, USB Keyboard Mouse Plug & Play (Transmitter and Receiver)(SWT-0098)
The Extender uses single cat5e or cat6(recommended)cables instead of HDMI cable to transmit high definition signal up to 60 meters,cutting down the cost. The Extender is designed to supply long-distance transmission of high definition signal.
* Support highest video resolution 1080p/60Hz;
* 60M long distance transmission
* Both the TX and RX support 3.5MM left and right audio output;
* Low power consumption, low temperature and high safety;
* Support IR remote control;
* Support USB mouse and keyboard extension.
Connecting and Operating:
1.Connect one HDMI cable between the source device and TX Extender, the max cable distance is 10 meters;
2.Connect one HDMI cable between the display device and RX Extender, the max cable distance is 15 meters;
3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX and RX Extender, the max cable distance is 60 meters;

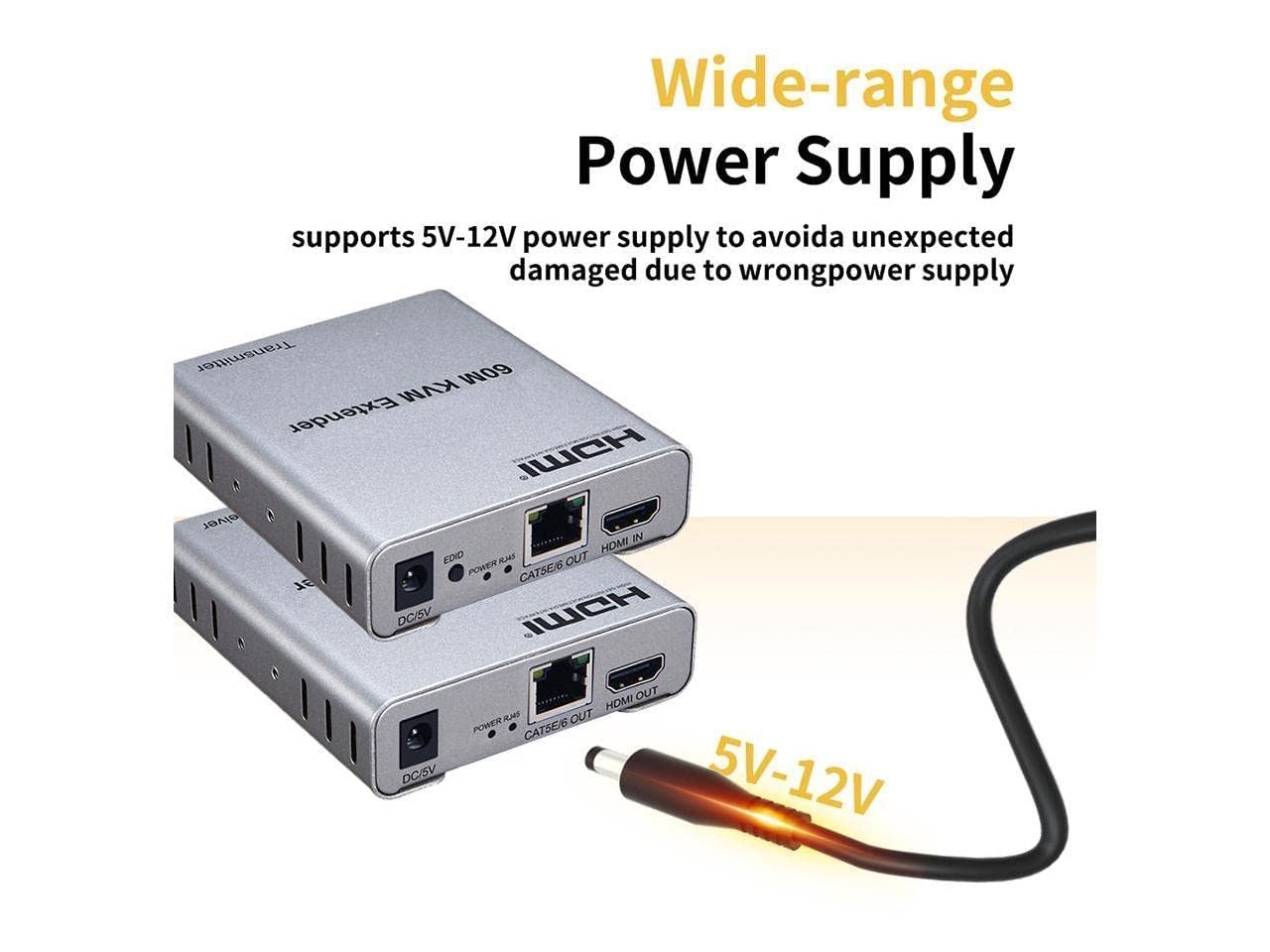

4.Connect 5V power supply to the TX and RX;
5.LED indicator light: TX LED indicator light: When there is signal input, it turns blue; RX LED indicator light: When there is signal input, it turns blue;
6.EDID button: The button can support the switch of EDID between 720P and 1080P. (1080P is the default EDID when the power is on).

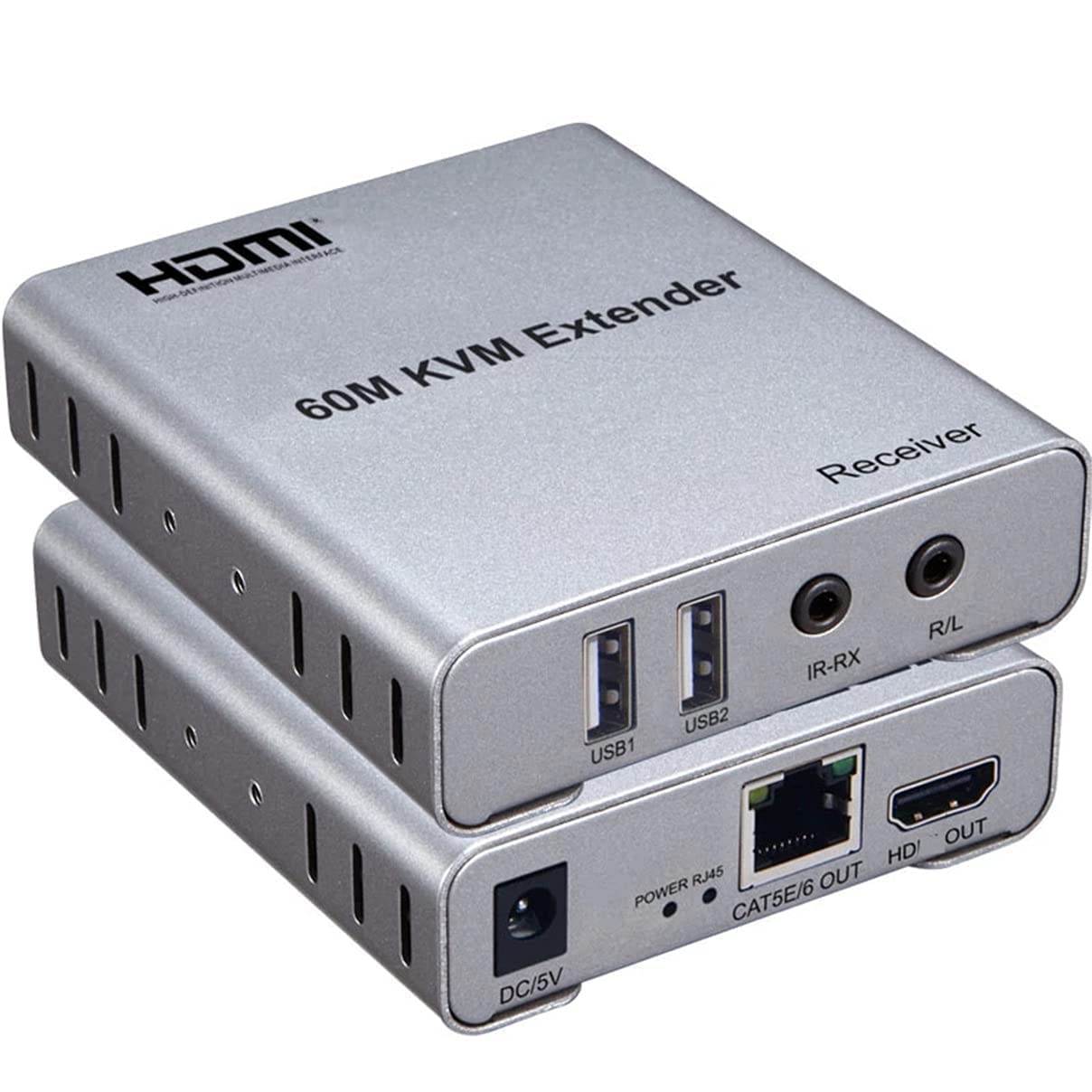

7.Plug the IR receiver cable into the receiver.and IR transmitter cable plug into the transmitter if you need the IR receiver cable,aim at the equipment which needs to control. Plug the mouse and keyboard into the two USB port of the receiver,and connect the USB port of the transmitter with the computer if you need the KVM control function.
