HDMI Quad Multi-viewer 4X1, 1080P 60Hz HDMI Quad Screen Segmentasi Splitter, 4 Channel Screen Splitter for Computer/HDTV/Projector etc.

HDMI Quad Multi-viewer 4X1,1080P 60Hz HDMI Quad Screen, HDMI 4×1 Multi-viewer, 4 in 1 Out Converter with Seamless Switch.(EXT-0271)

• Introduction :-
• This HDMI 4×1 Quad multi-viewer is high performance with four HD screen segmentation and unlimited switching function switcher. It can display 4 channels of HD digital video signal on the same screen, and has a variety of video segmentation, seamlessly switching 4 HD input signals synchronously. Flexible switch control method, Switchable via button and IR control. This is a very practical and stable switch and easy to install, It can be used in large projects, meeting rooms and other places.
• Features :-
• Supports 4 HDMI inputs, 1 HDMI output;
• Supports 4 channels of HDMI signal screen segmentation;
• Supports 4 channels HDMI signal seamless switching;
• Supports the highest resolution up to 1080P/60Hz; Support IR control;
• Input support resolution: 1080P,720P,1080i,1024X768,1360X768 and so on; Support Audio Output format: PCM2;

Specifications :-

• HDMI resolution 1080P/60Hz
• Audio Format PCM2
• Input cable distance HDMI standard cable AWG26 1080P/60Hz 15M
• Output cable distance HDMI standard cable AWG26 1080P/60Hz 15M
• Maximum bandwidth 150MHz
• Maximum baud rate 1.5x3Gbps
• Maximum working flow 0.6 A
• Format adapter power Input AC (50Hz, 60Hz) 100V to 240V; Output: DC 5V/1A
• Operating temperature range (10~+45℃)
• Dimensions Estimation. 121x119x19(mm)
• Weight Around. 220g.

• Four major technologies: anti-static technology to prevent electronic components from being damaged by static electricity. Anti-surge technology enhances product stability and prevents surge impact. 4K*2K/60Hz, enjoy the delicate world of high-definition visual experience. Pure hardware equipment, a variety of segmentation modes, easy to operate.
• Multi-system compatibility: Compatible with Windows series, Mac OS, Linux and other systems, no need to install drivers, plug and play. Compatible with various multimedia devices: PC/PS5/X-BOX/etc. that support HDMI signal.
• Support input resolution 1080P, 720P, 1080i, 1024X768, 1360X768, etc.; * Audio output format supports PCM2.

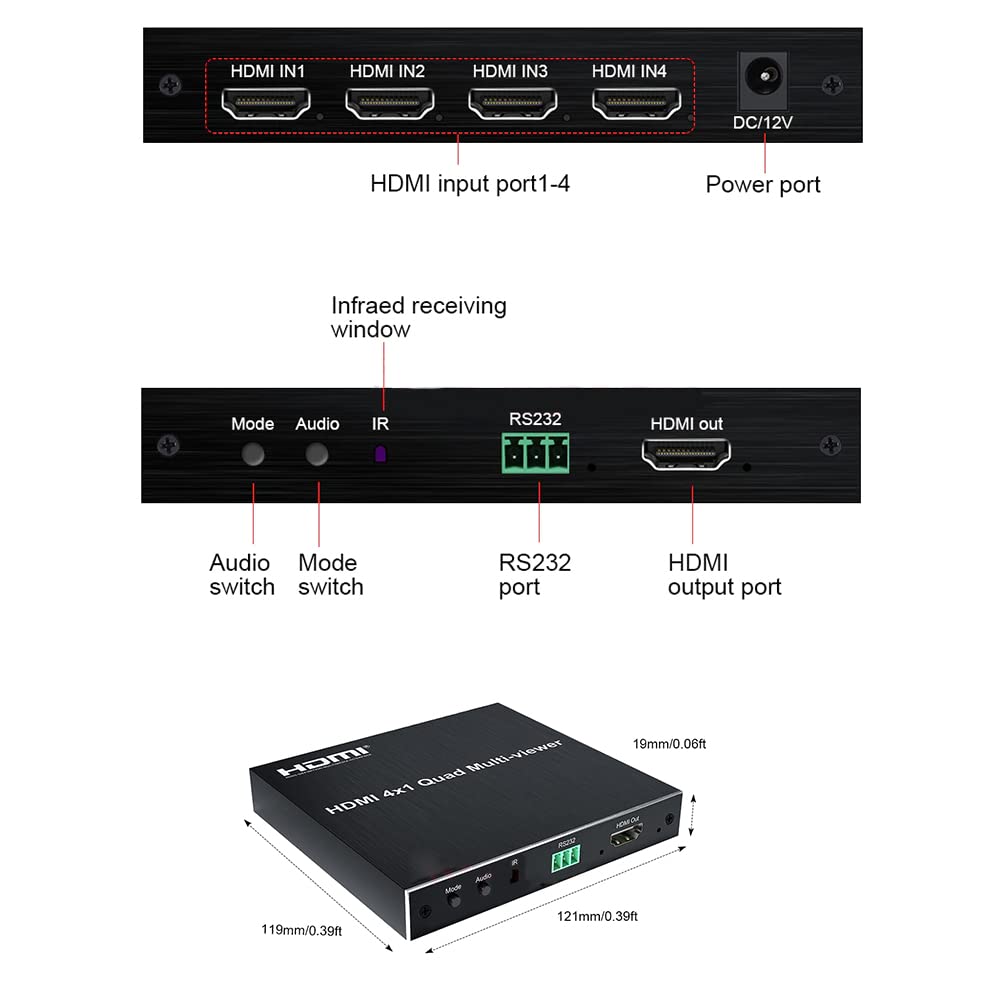

• Multi-control mode is easy to operate: support product button, remote control, background software (RS232) control, and can perform single-signal switching/split mode selection/resolution switching/audio switching and other settings.

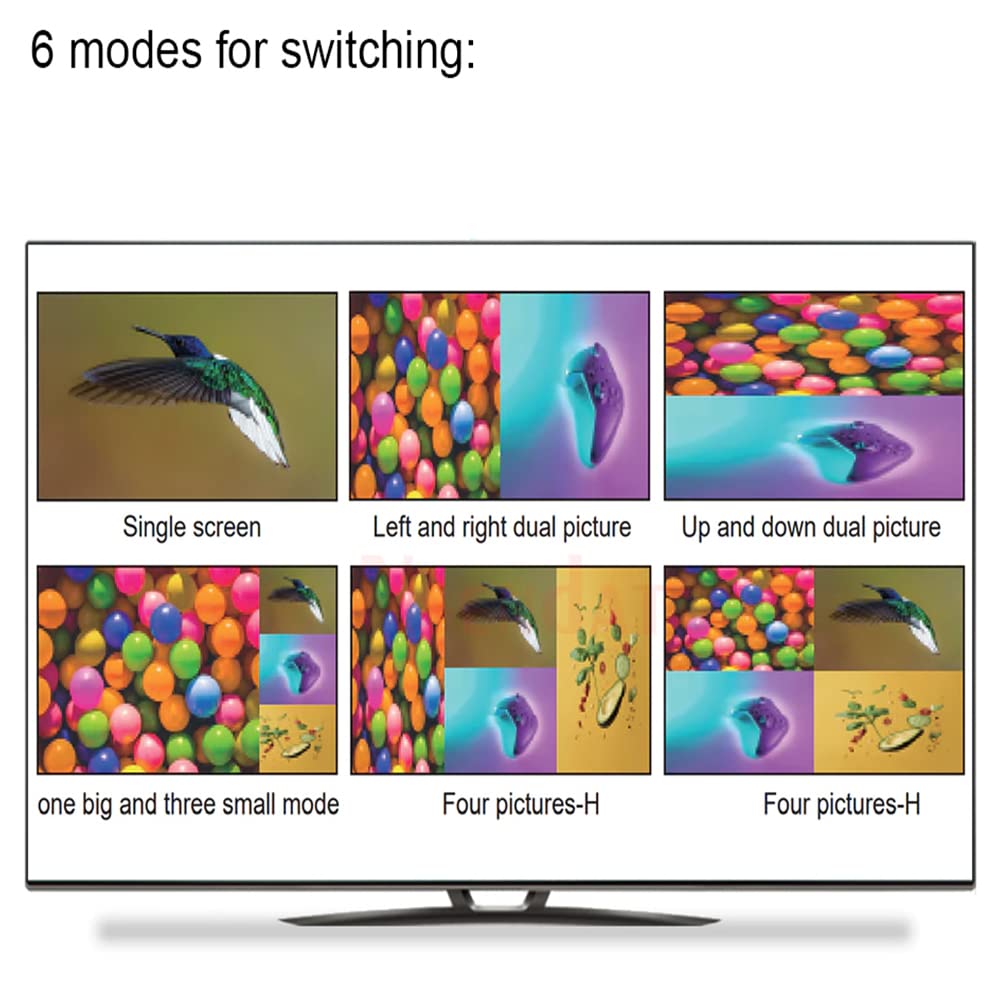

• Equalized division, even distribution: Divide the screen into four equal parts, divide it into a field pattern, and output four sets of pictures, the pictures are not stretched or deformed.

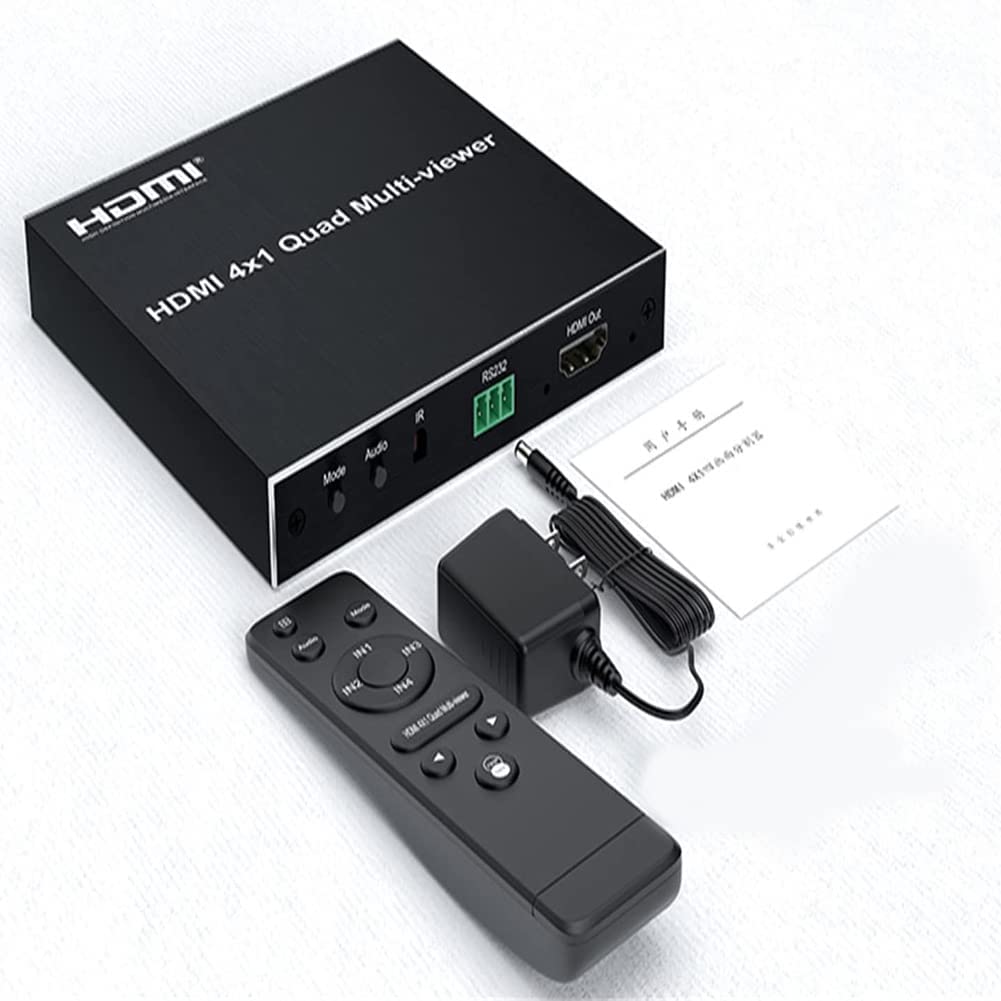

• Package includes:–
• 1 x HDMI 4×1 quad multi-viewer
• 1 x Power adapter
• 1 x Remote control without battery
• 1 x User Manual.
