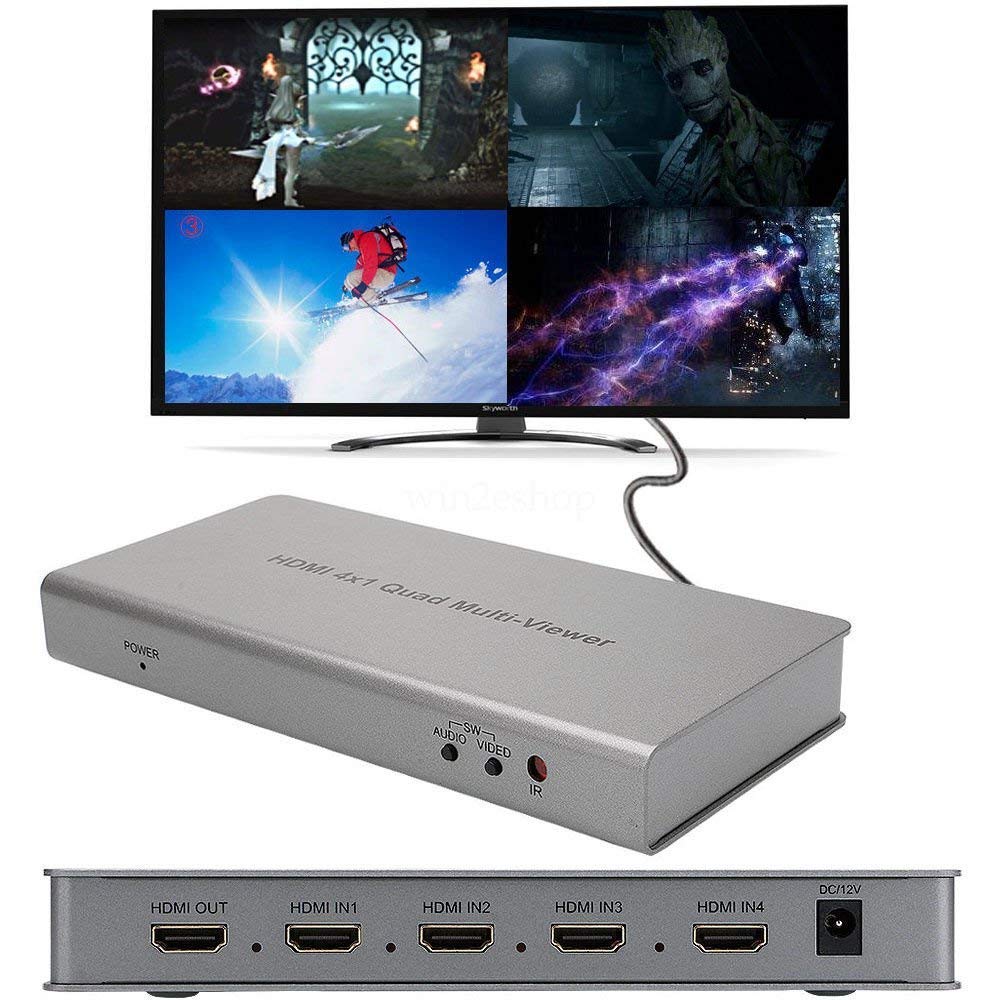

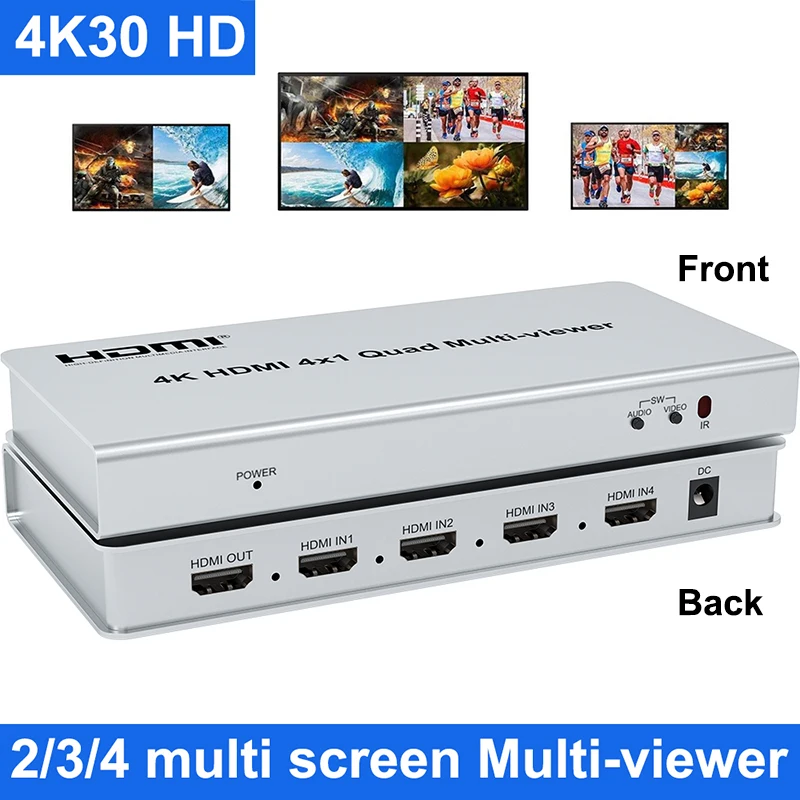

4X1 HDMI Multi-viewer HDMI 4×1 Quad Multi-Viewer Seamless Switcher with 5 Different Display Modes and IR Remote Control Support 1080P, PIP Mode Support (Silver)
This HDMI 4×1 Quad Multi-viewer is a Good performance with four HD screen segmentation and seamless switching output switch.
The control methods of the switch is flexible, it can be switched via button and IR control. Its a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.

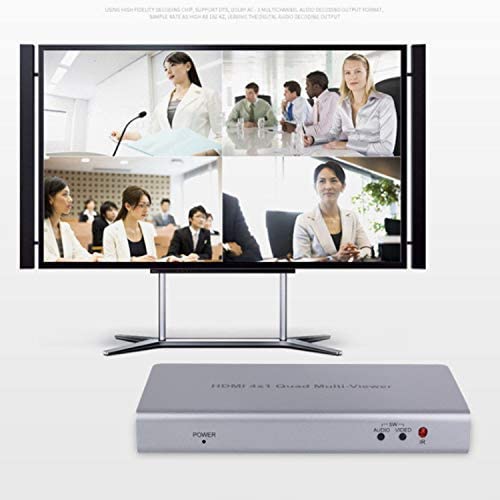

It can display 4HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 4 HD input signal synchronously.
Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC. Inputs can be switched with the IR remote controller, also can be controlled by built-in button. Extend the transmission distance and improve transmission signal. Compatible with DVI through a HDMI to DVI adapter.
Compliant with HDMI 1.3a,HDCP 1.2. Supports up to 1080p resolution. Supports 720/1080p output resolution. Supports Equalizer TMDS Output: 25MHz 225MHz TMDS clock.
This 4K HDMI 4×1 Quad Multi-viewer is a high performance with four HD screen segmentation and seamless
switching output switch. It can display 4HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 4 HD input signal synchronously. The control methods of the switch is flexible, it can be switched via button or IR control. It’s a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.
Features:

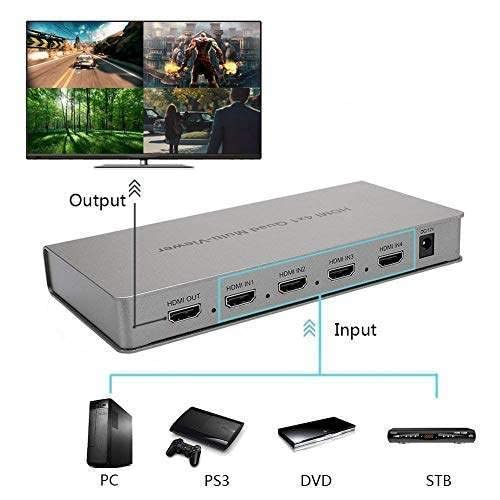

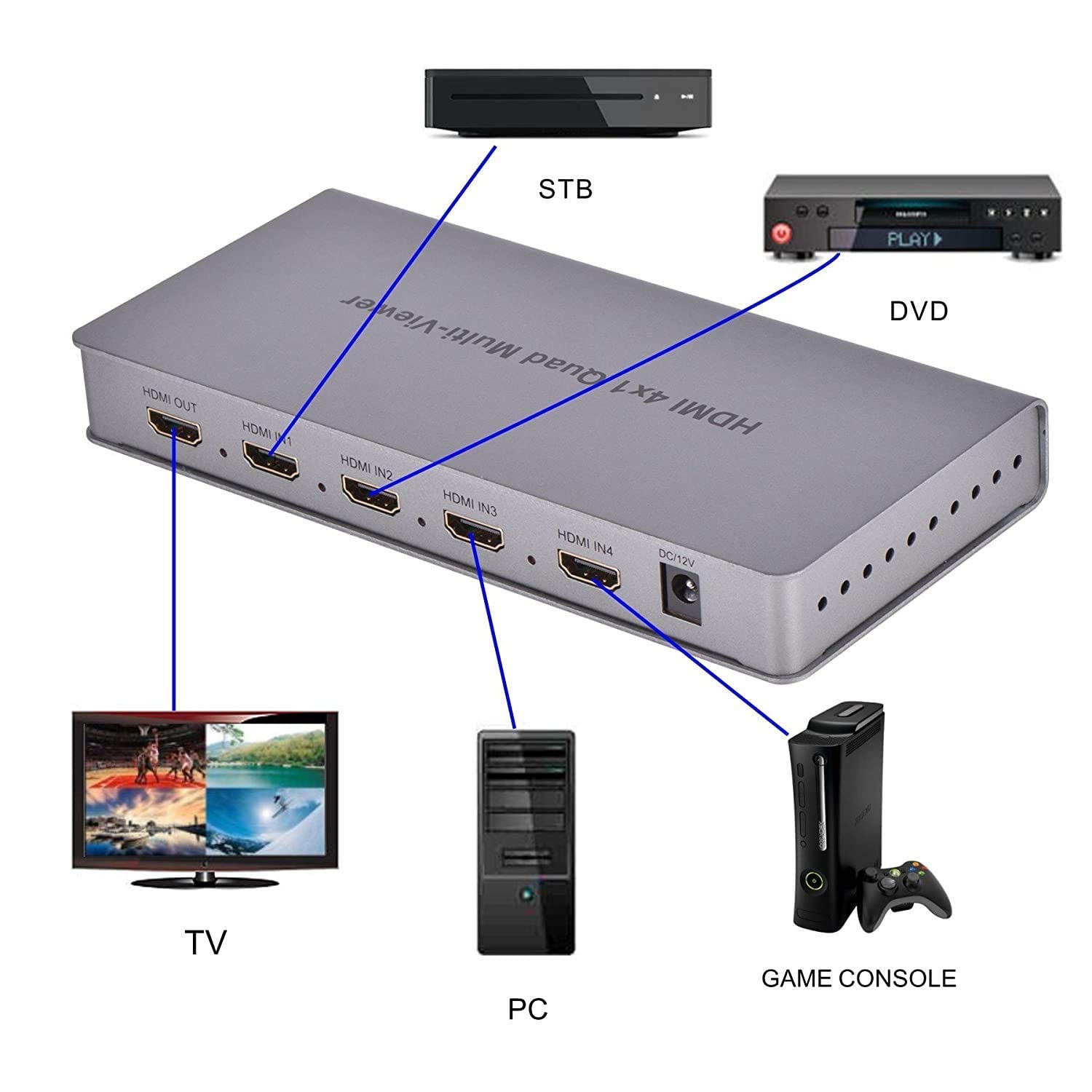

* Support 4HDMI input, 1 HDMI output;

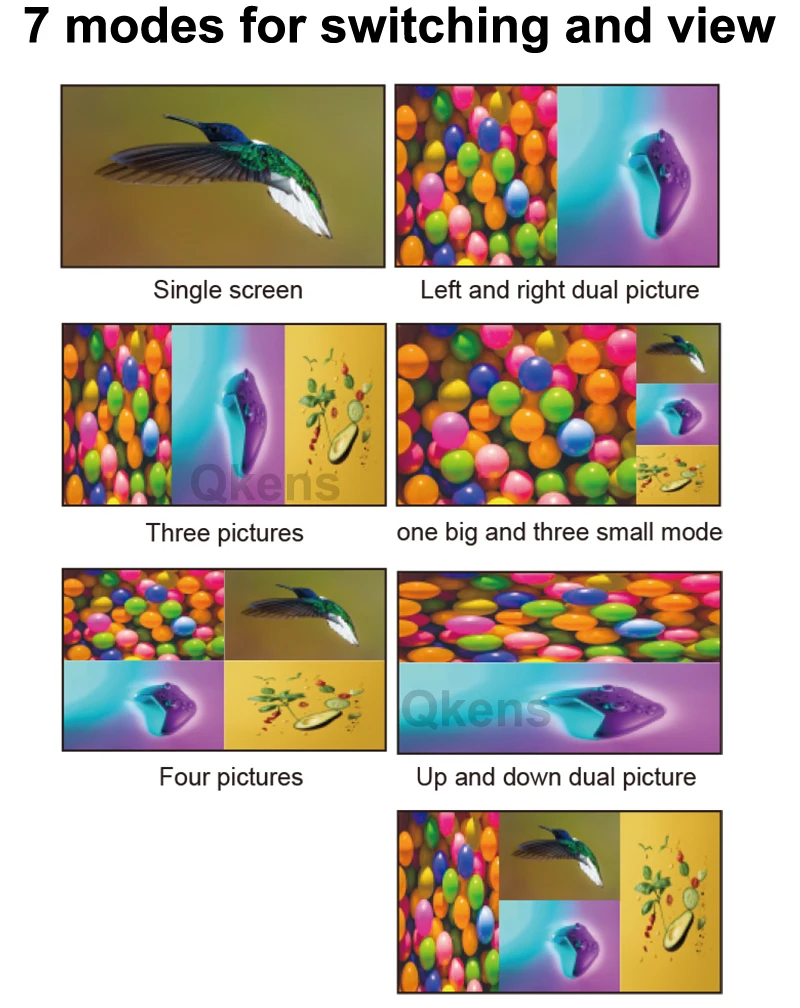

* Support 4 channels HDMI signal screen segmentation;
* Support 4 channels HDMI signal seamless switching;
* Support highest resolution up to 4K/30Hz;
* Support IR control;
* Input support resolution: 4K,1080P,720P,1080i,1024X768,1360X768 and lower resolution;
* Support audio output format: LPCM2.0;
Specifications:
HDMI resolution ………………………………………………………………………………………. 4K/30Hz
Audio format ……………………………………………………………………………………………….. PCM2
Input cable distance ……………………………… 4K/30Hz ≤10M AWG26 HDMI standard cable
Output cable distance …………………………… 4K/30Hz ≤10M AWG26 HDMI standard cable
Max bandwidth …………………………………………………………………………………………. 340MHz
Max baud rate ………………………………………………………………………………………. 3.4x3Gbps
Maximum working current ………………………………………………………………………………. 0.6 A
Power adapter format …………… Input AC (50 hz, 60 hz) 100V to 240V; Output: DC 5V/1A
Operating temperature range ……………………………………………………………… (10 ~ + 45 ℃)
Dimension …………………………………………………………………………..approx.190x90x23(mm)

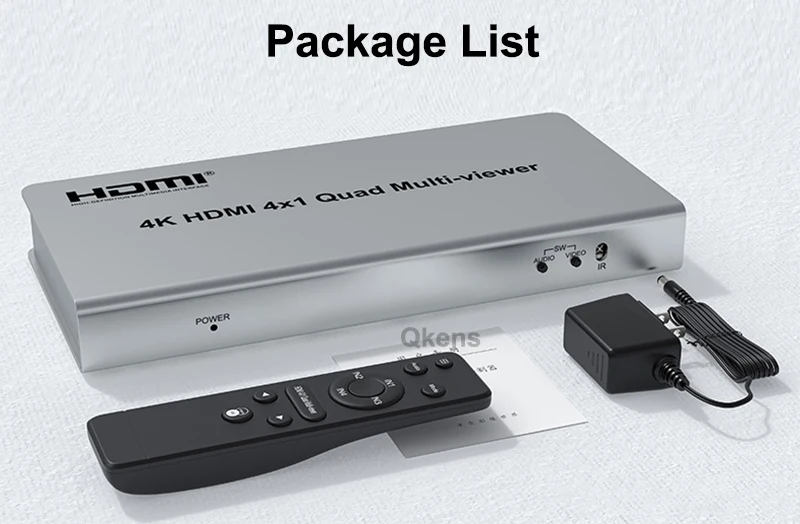

Package Content:
1. 4K 4×1 HDMI multi-viewer 1PCS
2. Power adapter 1PCS
3. Remote control without battery 1PCS
4. User manual 1PCS
without retail box and other accessories,if any need,pls contact us before purchase.
This HDMI 4×1 Quad Multi-viewer is a Good performance with four HD screen segmentation and seamless switching output switch.
The control methods of the switch is flexible, it can be switched via button and IR control. Its a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.
It can display 4HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 4 HD input signal synchronously.
Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC. Inputs can be switched with the IR remote controller, also can be controlled by built-in button. Extend the transmission distance and improve transmission signal. Compatible with DVI through a HDMI to DVI adapter.
Compliant with HDMI 1.3a,HDCP 1.2. Supports up to 1080p resolution. Supports 720/1080p output resolution. Supports Equalizer TMDS Output: 25MHz 225MHz TMDS clock.
