For use with all space-constrained mobile devices, desktops, workstations, value servers or industrial designs. For X1 single board computer implementation of multiple network ports.
Mounts to the M2 E A Key port of laptops. Compatibility: Windows ME,98SE, 2000, XP, Vista, 7, 8, 10, 11 32-/64-bit, Windows Server (including Server 2025), Free BSD, Linux, VMWare, MAC
Intel I226 Chipset Compliant with PCI Express Revision 3.1 (5GT/s) specification. Card format M2 E A key 2230.
IEEE802.3 standard MDI (copper) Ethernet interface up to 2.5Gbps. Meets MDI standard IEEE802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications ( IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3) applications. IEEE802.3x and IEEE802.3z compliant flow control support with RX thresholds and software-controllable TX pause frames.
Automatic crossover detection function (MDI/MDI-X). IEEE 1588 protocol and 802.1AS implementation. Support for time-sensitive networking (TSN) capabilities. Supports IEEE802.3az-Energy Efficient Ethernet (EEE).
Full Wake-On-Lan support TCP/UDP, IPv4 checksum offloads (Rx/Tx). Transmission segmentation (TSO) shedding (IPv4, IPv6). Supports packages up to 9.5 KB Jumbo Frames.
Windows ME,98SE, 2000, XP, Vista, 7, 8, 10, 11 32-/64-bit, Windows Server (including Server 2025), Free BSD, Linux, VMWare, MAC.
Features:

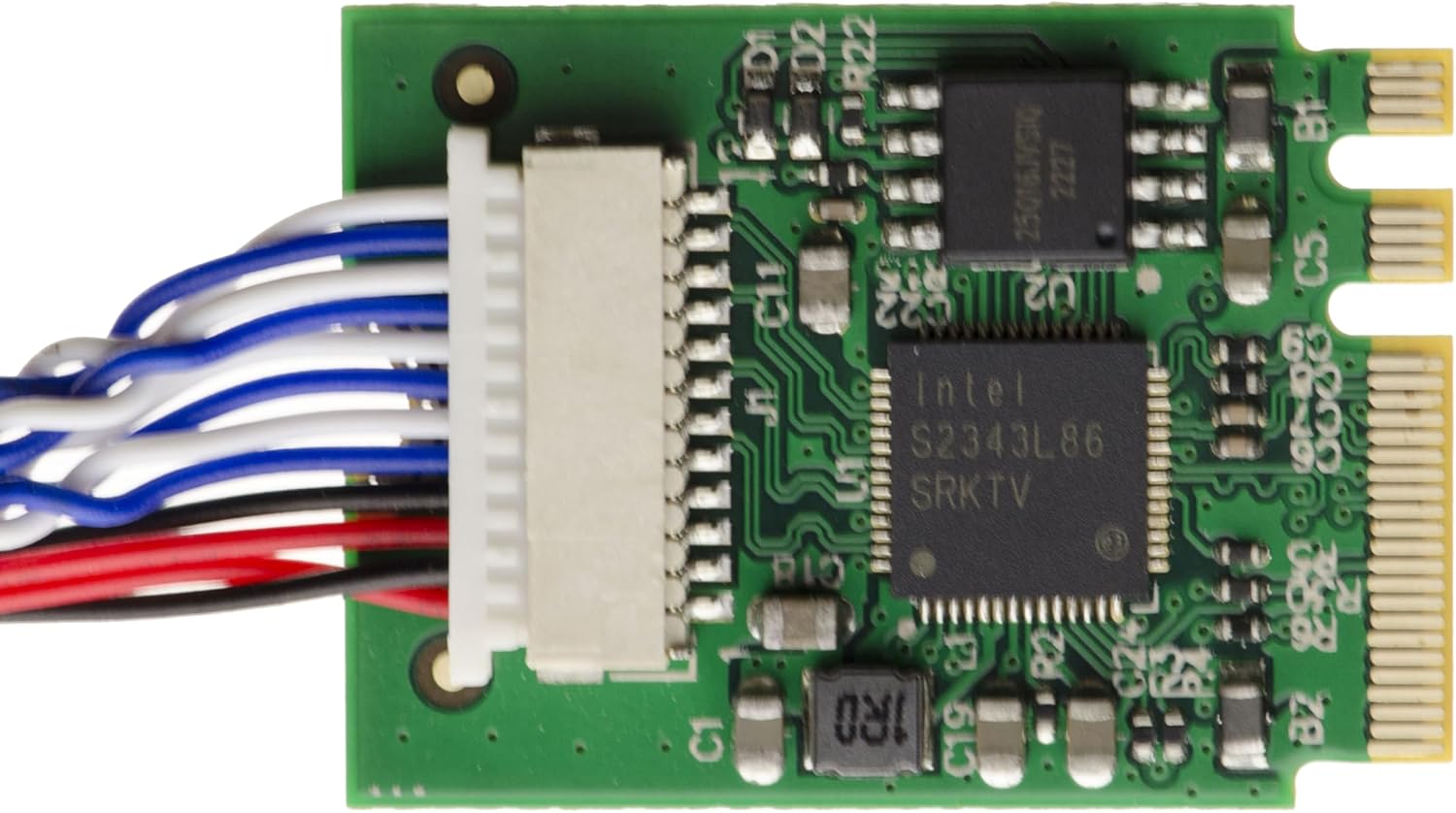

Intel I226 Chipset
Compliant with PCI Express Revision 3.1 (5GT/s) specification.
Card format M2 E A key 2230.
IEEE802.3 standard MDI (copper) Ethernet interface up to 2.5Gbps.
Meets MDI standard IEEE802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications ( IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3) applications.
IEEE802.3x and IEEE802.3z compliant flow control support with RX thresholds and software-controllable TX pause frames.
Automatic crossover detection function (MDI/MDI-X).
IEEE 1588 protocol and 802.1AS implementation.
Support for time-sensitive networking (TSN) capabilities.
Supports IEEE802.3az-Energy Efficient Ethernet (EEE).
Full Wake-On-Lan support
TCP/UDP, IPv4 checksum offloads (Rx/Tx).
Transmission segmentation (TSO) shedding (IPv4, IPv6).
Supports packages up to 9.5 KB Jumbo Frames.
For use with all space-constrained mobile devices, desktops, workstations, value servers or industrial designs. For X1 single board computer implementation of multiple network ports.
Mounts to the M2 E A Key port of laptops. Compatibility: Windows ME,98SE, 2000, XP, Vista, 7, 8, 10, 11 32-/64-bit, Windows Server (including Server 2025), Free BSD, Linux, VMWare, MAC
Intel I226 Chipset Compliant with PCI Express Revision 3.1 (5GT/s) specification. Card format M2 E A key 2230.
IEEE802.3 standard MDI (copper) Ethernet interface up to 2.5Gbps. Meets MDI standard IEEE802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications ( IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3) applications. IEEE802.3x and IEEE802.3z compliant flow control support with RX thresholds and software-controllable TX pause frames.
Automatic crossover detection function (MDI/MDI-X). IEEE 1588 protocol and 802.1AS implementation. Support for time-sensitive networking (TSN) capabilities. Supports IEEE802.3az-Energy Efficient Ethernet (EEE).
Full Wake-On-Lan support TCP/UDP, IPv4 checksum offloads (Rx/Tx). Transmission segmentation (TSO) shedding (IPv4, IPv6). Supports packages up to 9.5 KB Jumbo Frames.
