Connect the HDMI receiver to the HDTV display with HDMI cable.
Use one Cat5e/6 cable up to 120m to connect the Sender and Receiver.

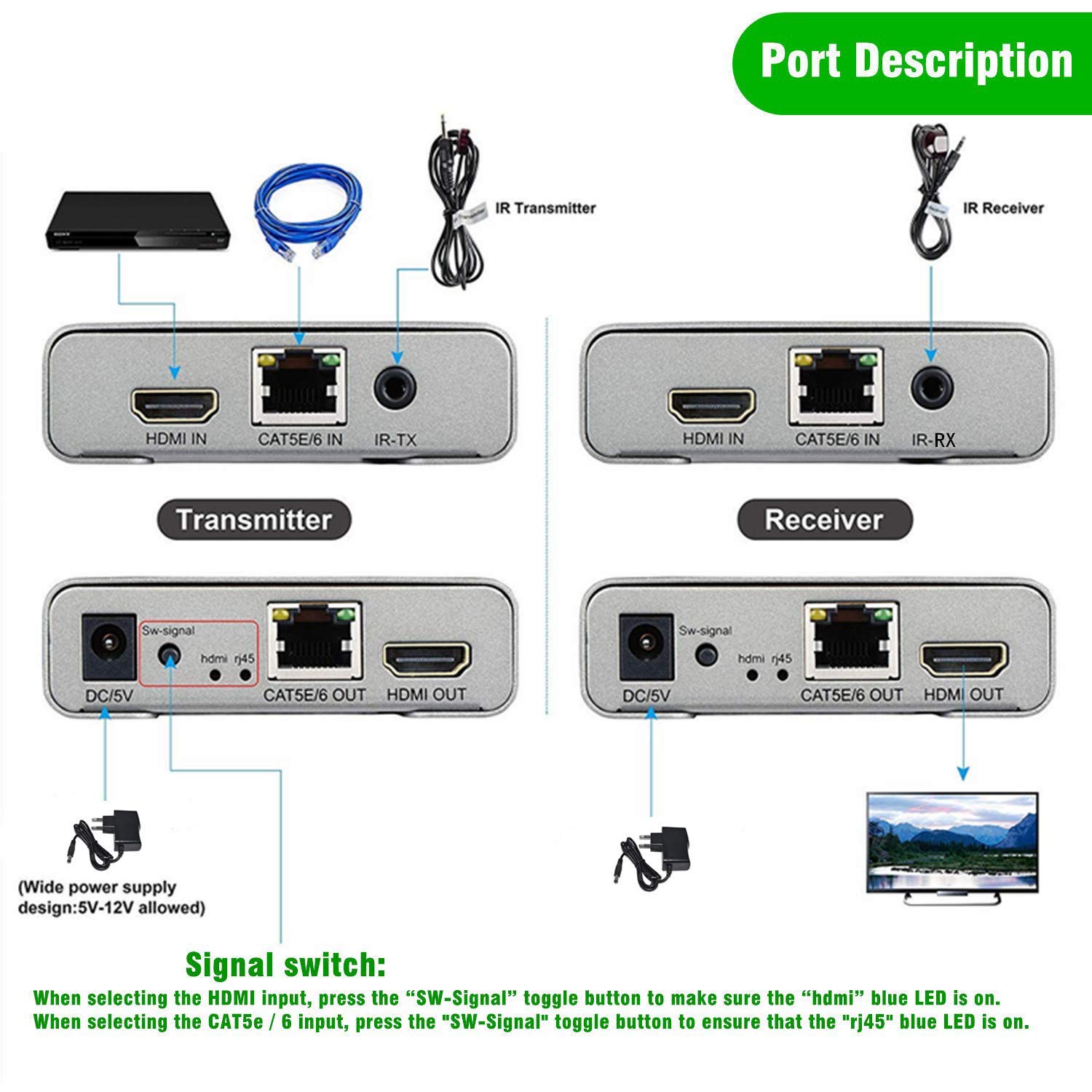

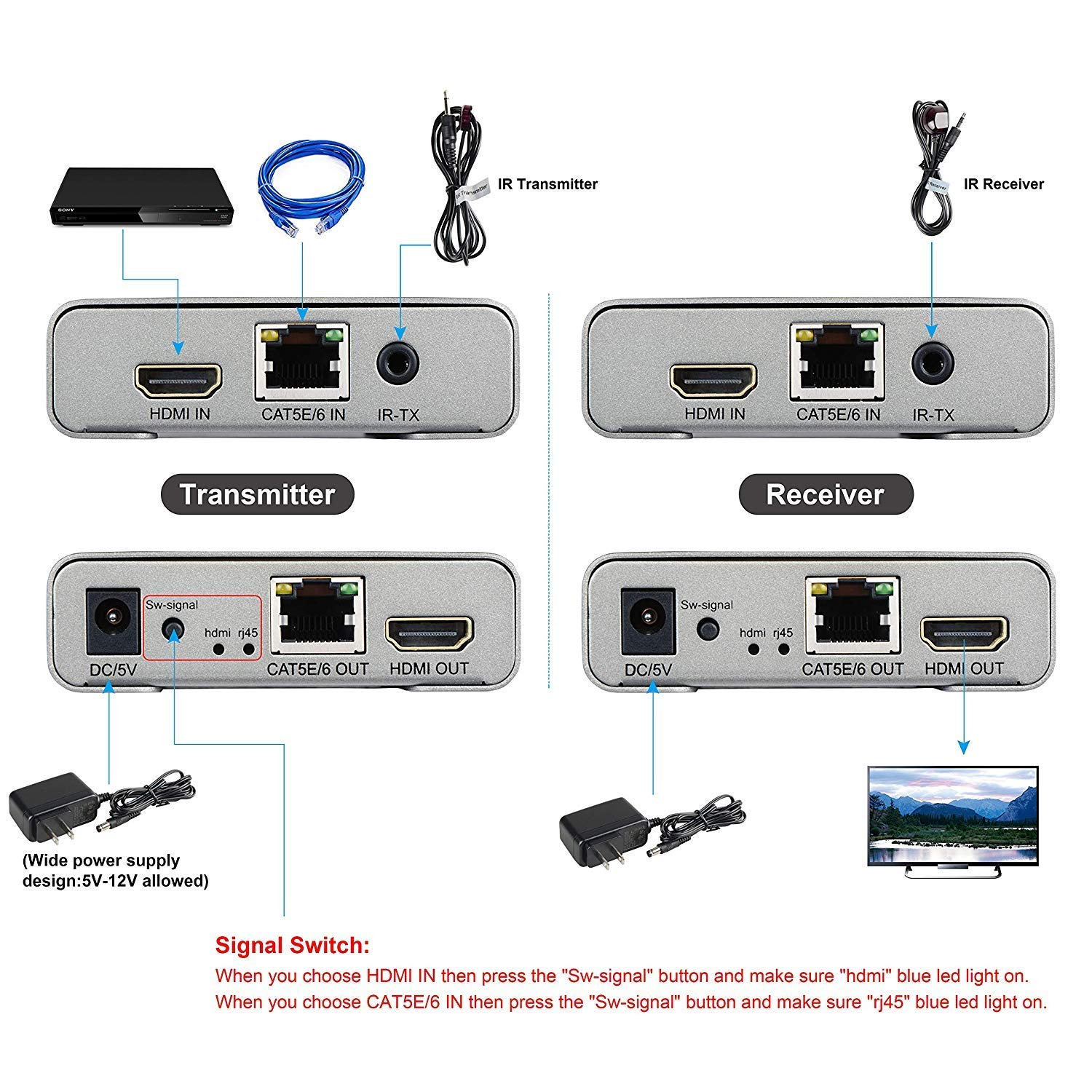

Connect the “IR receiver “into “IR-TX” port on transmitter, and “IR transmitter ” into the “IR-RX” on receiver, and make sure the IR transmitter aim at IR receiver of the controlled device if you need the IR control function.

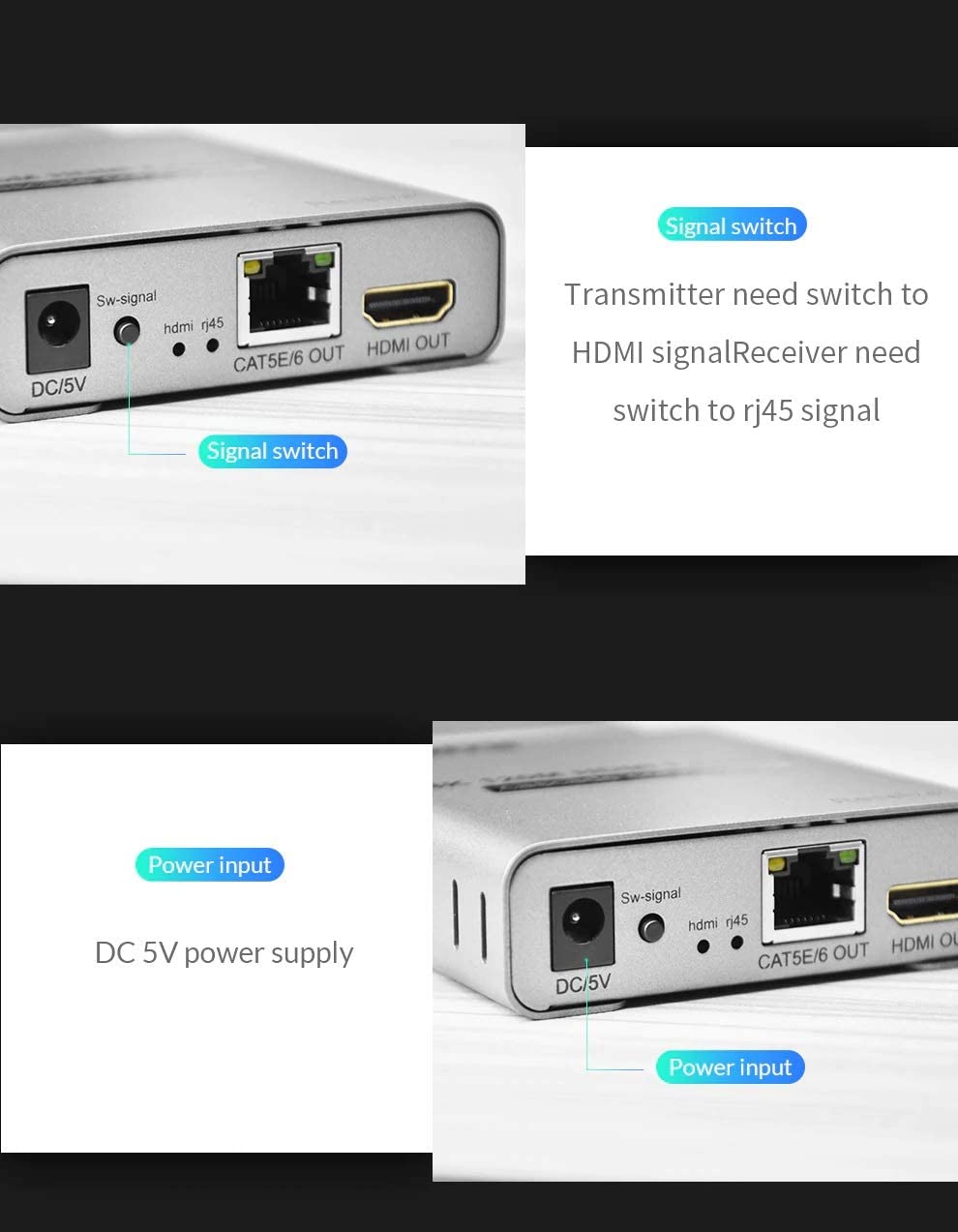

Connect two pieces of 5V power supply to the transmitter and receiver, power supply for the equipment and the LED indicator light on. When status lamp on and flicker, equipment starts normal.
Multipoint to multipoint match setting: when multipoint to multipoint connecting and multiple TX and multiple RX connect to the switch, the IP extender can match based on “SET” setting (eg: “SET” of TX is 0001, “SET” of RX is 0001

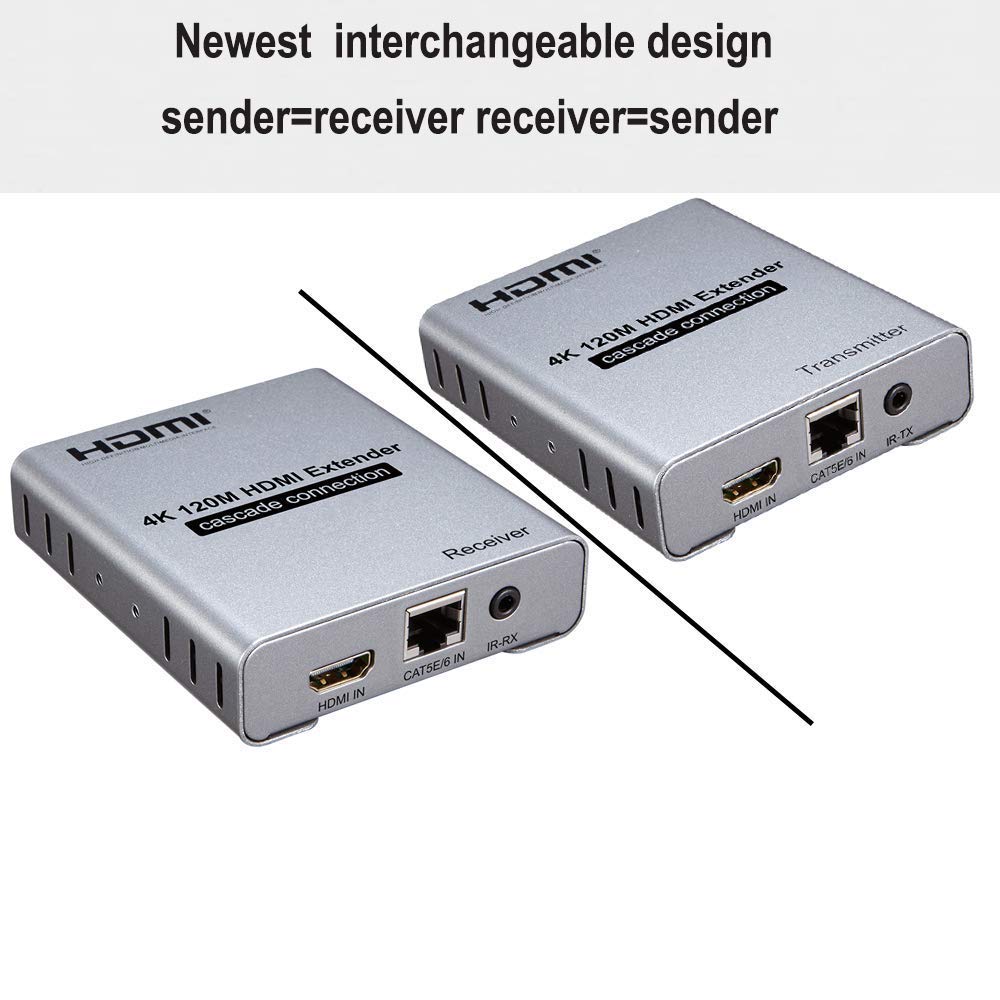

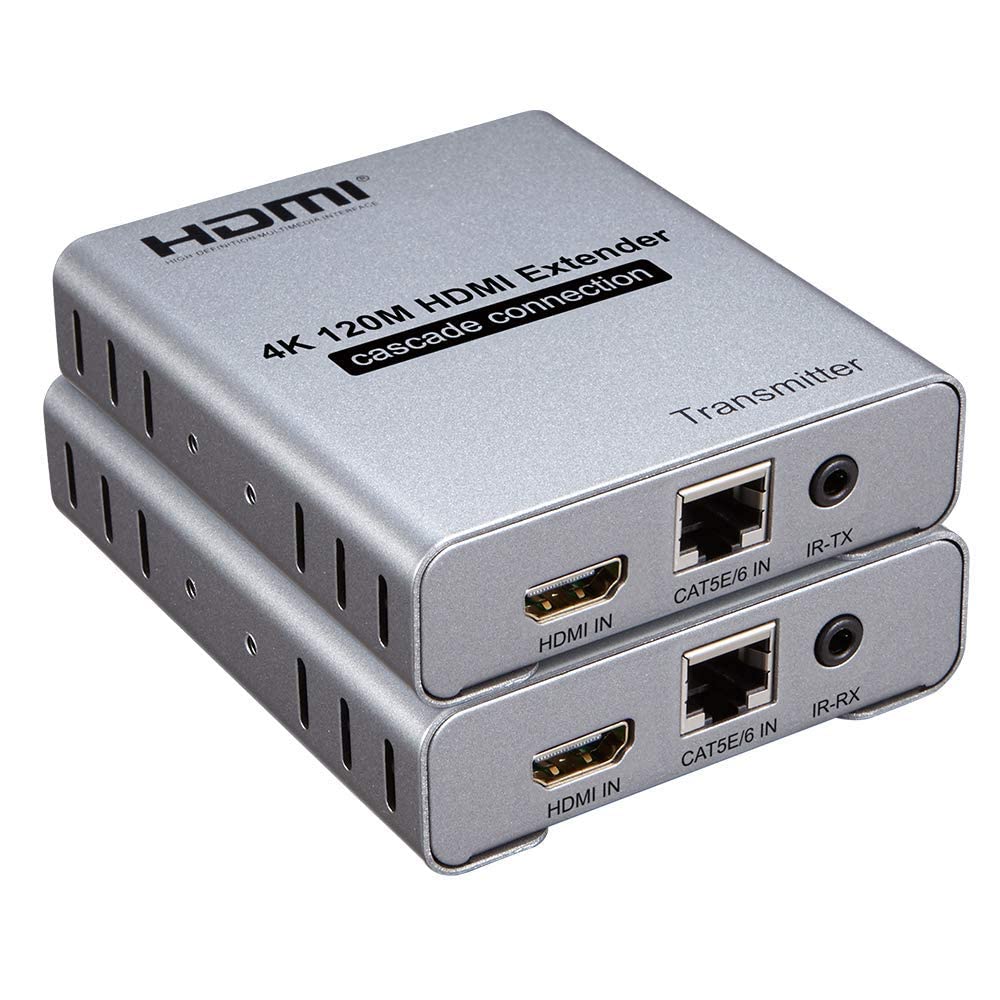

This 4K/30HZ 120m HDMI Extender uses one single cat-5e or cat-6(recommended) cable instead of HDMI cable, you can extend the 4K/30HZ signal to 120 meters. The purpose of the extender is to achieve long-distance signal transmission with low-cost wires.
Extends 4K@30Hz/ 1080p up to 400ft via Cat5e / Cat6 / Cat7 Ethernet Cable | Max. 50ft on each HDMI cable | HDMI 1.4, HDCP 1.4.

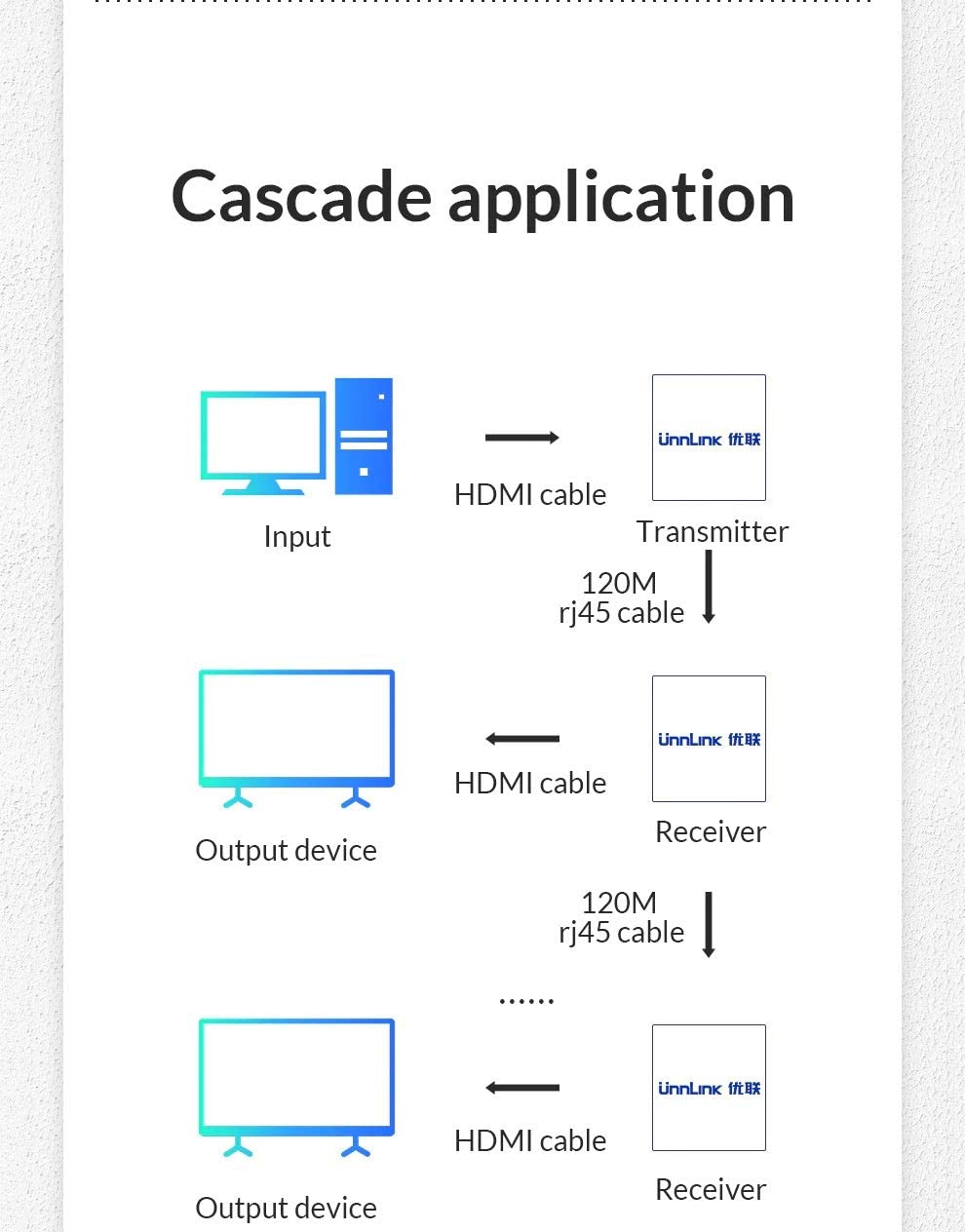

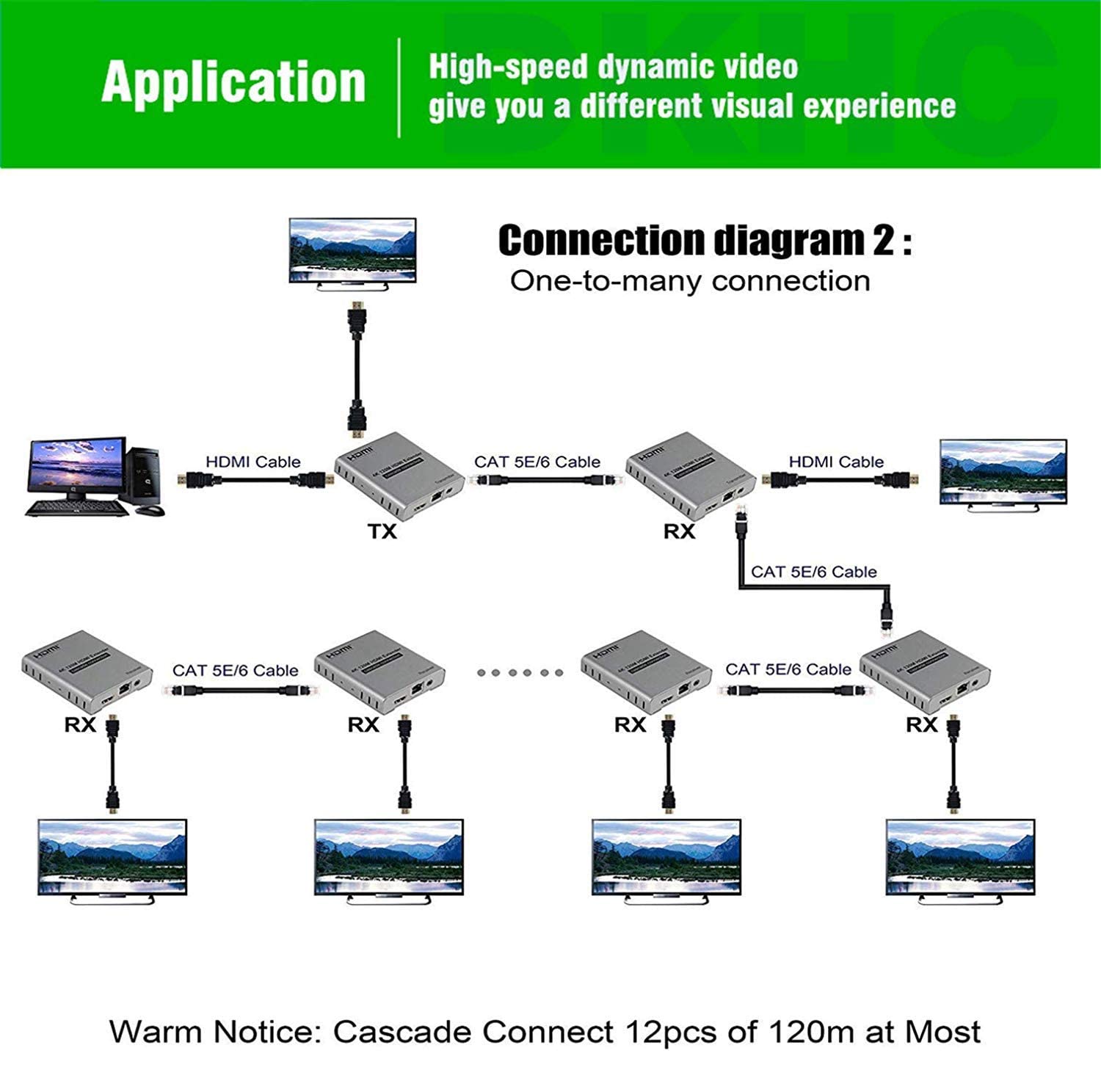

Local Loop Out – Allows one additional display on the signal sending side provides convenience for monitoring; Remote IR Control – Control the input HDMI video source (e.g. DVD player) from the display (e.g. TV, monitor) location with the included IR sensor cables; Cascading – Allows 1-to-1 or 1-to-multiple extension with additional Receiver unit.
Premium Product Quality – Provides 8000v industry-level surge protection against static electricity and lightning strikes; Latest Innovation – Newly-designed isolation transformer enhances your signal for stable transmission over longer distances and also isolates the core for added protection from power surges and lightning strikes.
Specifications:
Input video signal: 5Volts p-p(TTL)
Video resolution support: Up to 3840 X 2160/30HZ backward compatible.
Support audio format: DTS/Dolby/LPCM
Support video format: 4K/1080P/720P and so on.
Maximum bandwidth transmission: 340MHz
Maximum transfer rate: 3 x 3.4Gbps
Input cable length: ≤15M AWG26 HDMI standard cable
Output cable length: ≤15M AWG26 HDMI standard cable
Maximum operating current: TX: 350mA; RX: 200mA
Power adapter specifications: input: AC (50HZ, 60HZ) 100-240V; output: DC5V / 1A;
Connect the HDMI receiver to the HDTV display with HDMI cable.
Use one Cat5e/6 cable up to 120m to connect the Sender and Receiver.
Connect the “IR receiver “into “IR-TX” port on transmitter, and “IR transmitter ” into the “IR-RX” on receiver, and make sure the IR transmitter aim at IR receiver of the controlled device if you need the IR control function.
Connect two pieces of 5V power supply to the transmitter and receiver, power supply for the equipment and the LED indicator light on. When status lamp on and flicker, equipment starts normal.
Multipoint to multipoint match setting: when multipoint to multipoint connecting and multiple TX and multiple RX connect to the switch, the IP extender can match based on “SET” setting (eg: “SET” of TX is 0001, “SET” of RX is 0001
